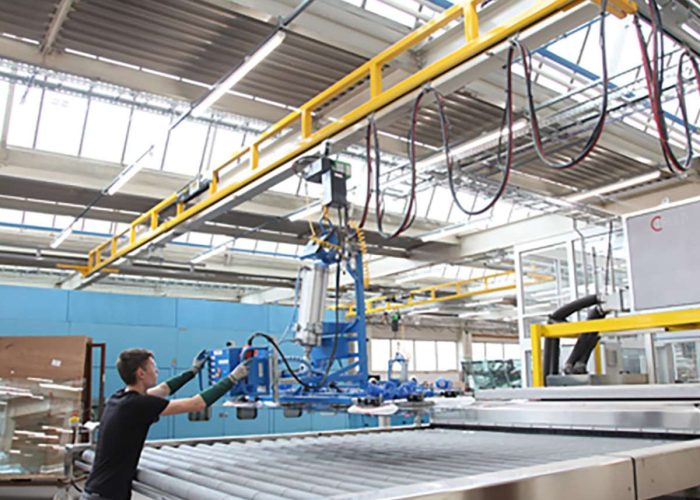

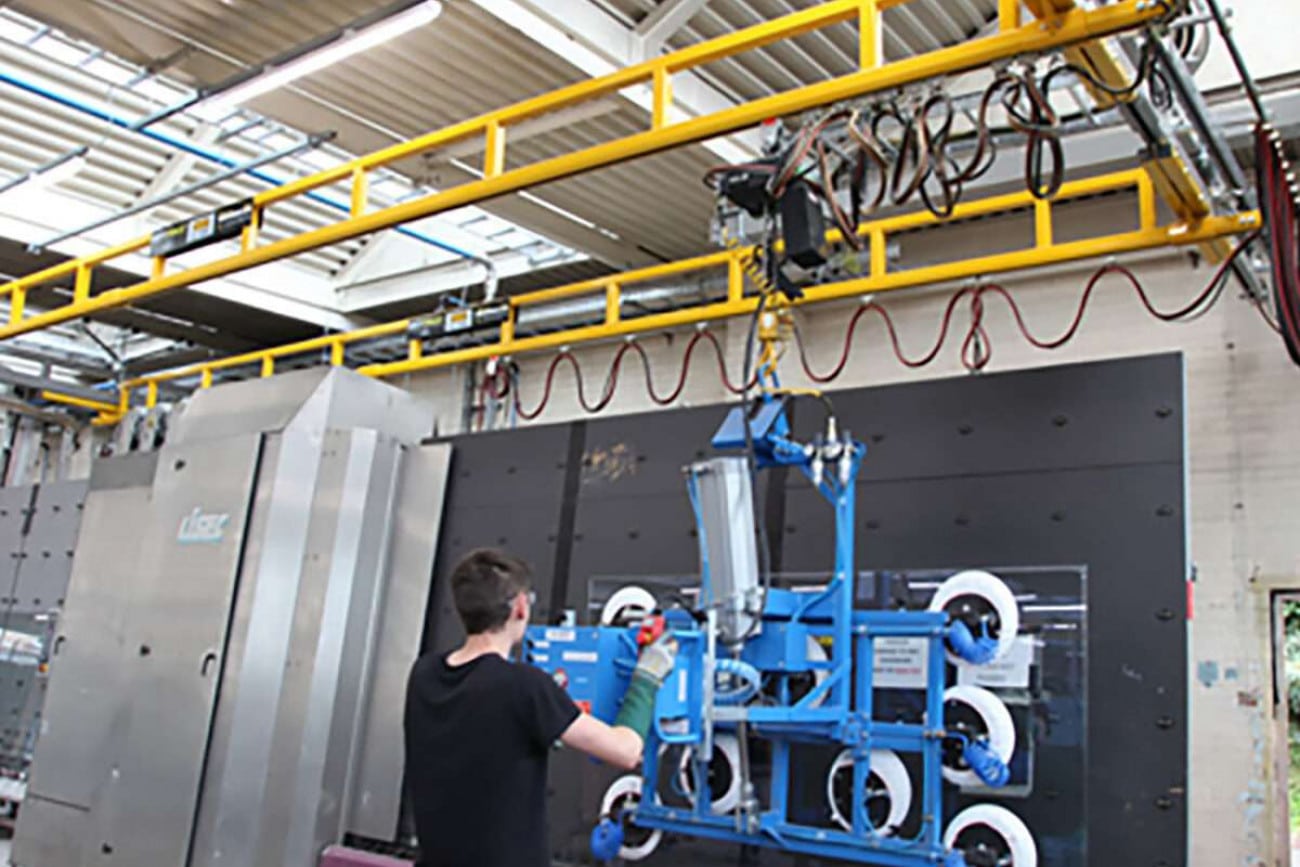

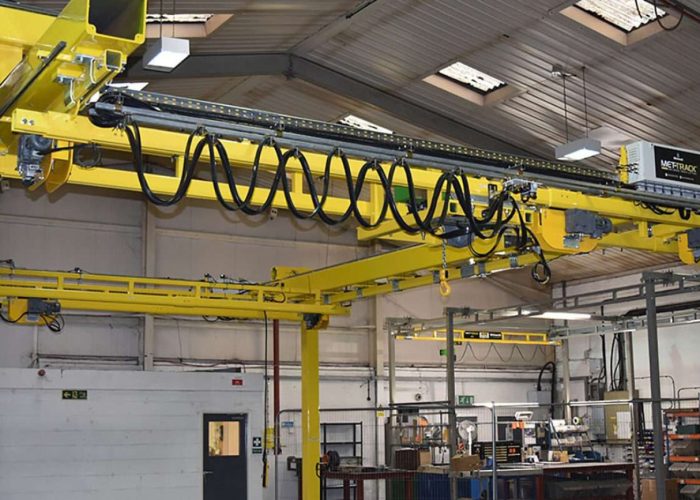

Met-Track® workstation bridge cranes enable you to achieve effortless and reliable area-serving overhead handling for a wide variety of applications. Each system is configured with the operator in mind and includes the principle feature of ease of movement, designed to reduce fatigue and ensure accurate load positioning. Quality materials and construction ensure operational reliability, safety and facilitate long life combined with minimum maintenance.
Stone Fabricator Solutions bridge cranes now support a 42-foot bridge length, 40-foot runway span, and 4,000 lb capacity—extending previous maximums.

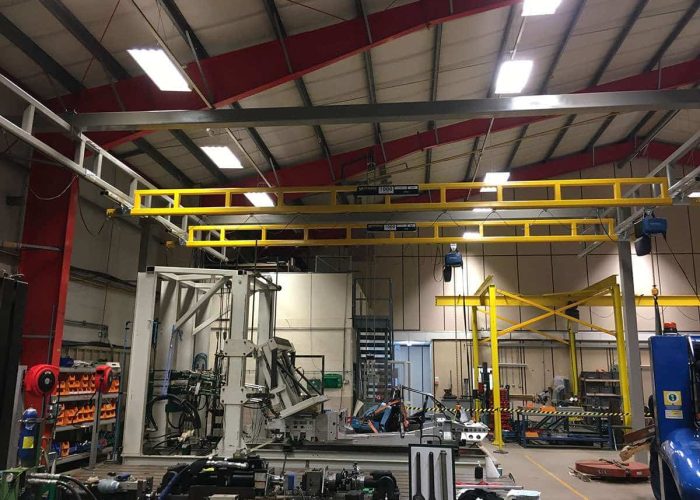

Workstation Bridge Crane
The Met-Track® steel track design is one of high strength and low weight by combining the running track profile with standoff reinforcement to considerably increase span distances. The ‘V’ shaped profile of the running track ensures alignment of the trolleys and end truck but also prevents dirt accumulation inside the tracks.
Machined wheels with crowned tread and precision sealed bearings ensure absolute minimum rolling resistance, providing long operational life.
Workstation Bridge Crane
BY
Features
Bridge lengths up to 42' (12.8m)
Loads up to 6000lbs (3000kgs)
Runway supports up to 40' (12m)

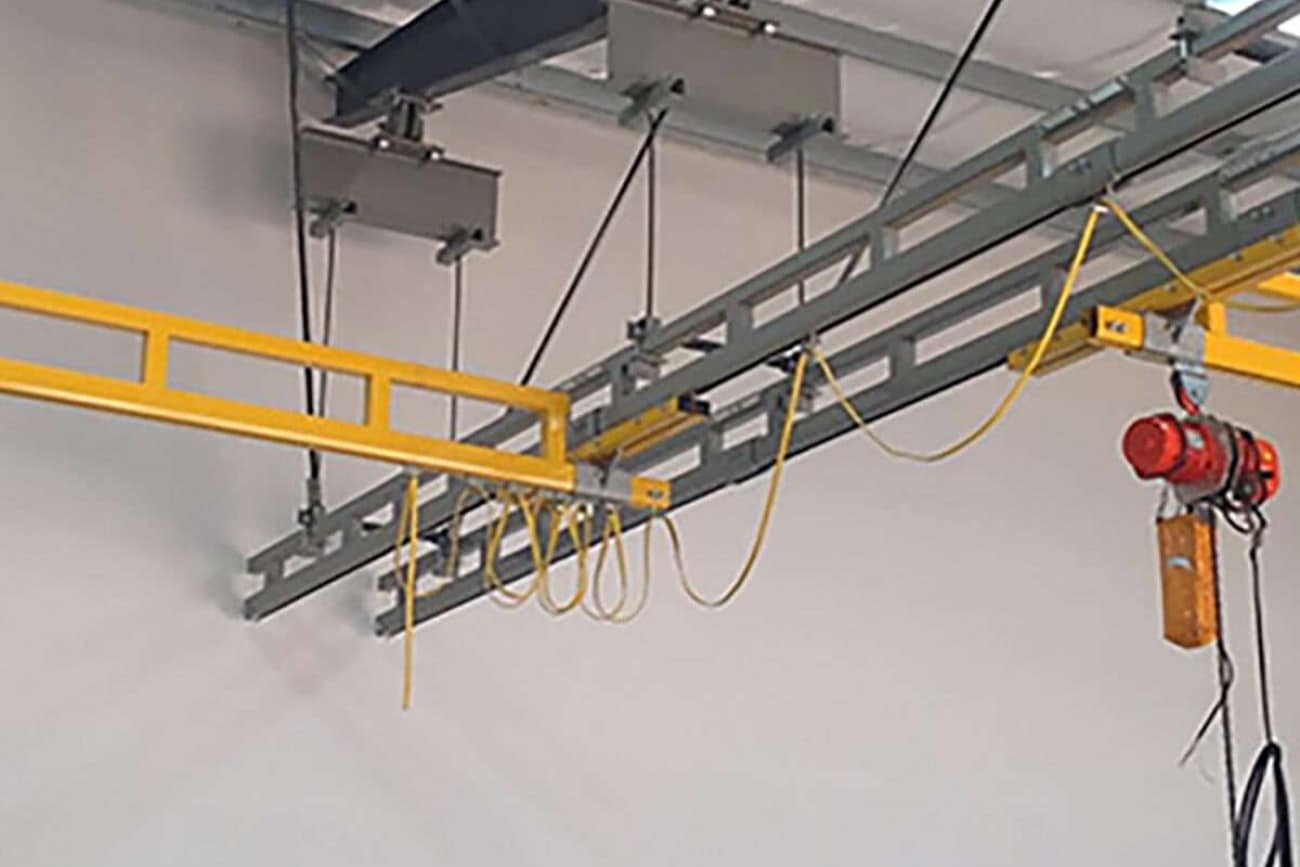

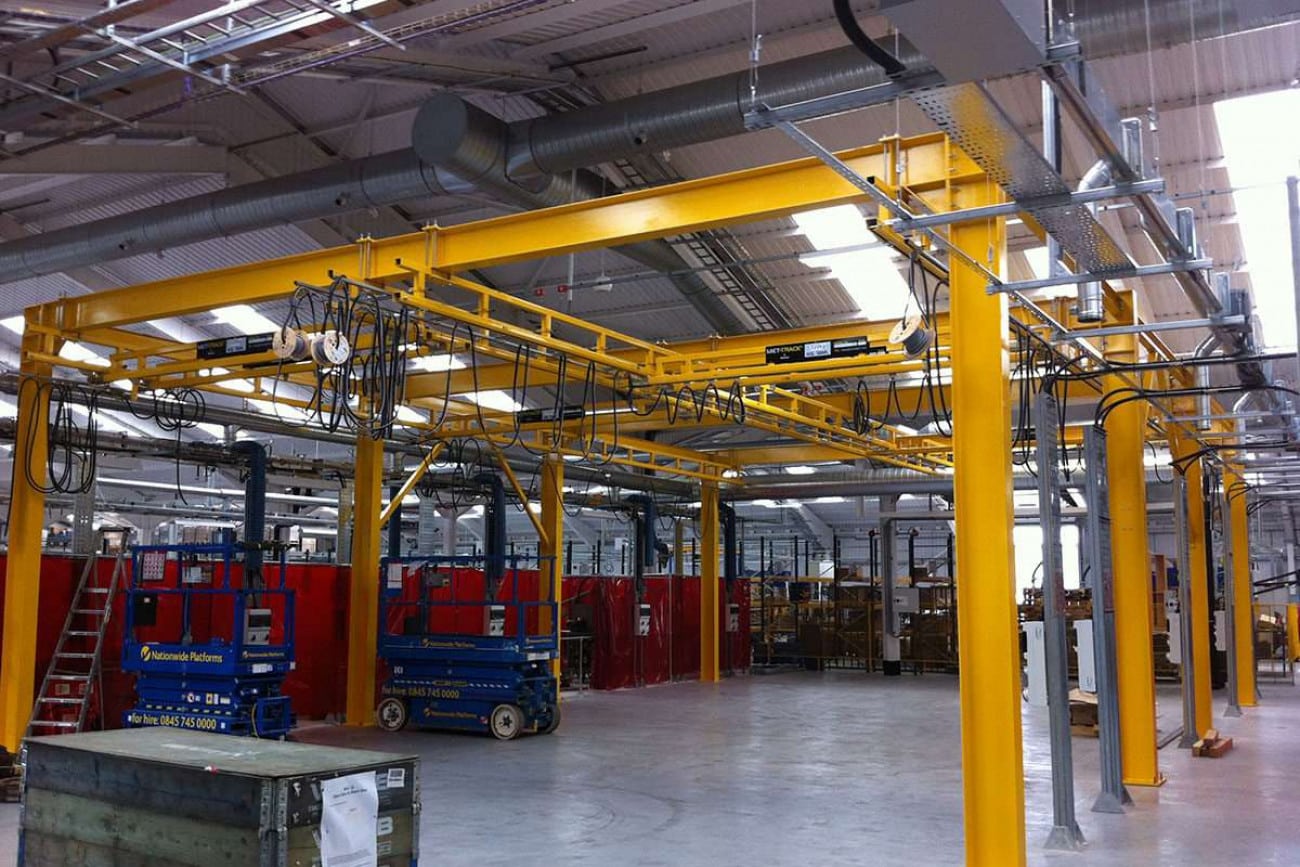

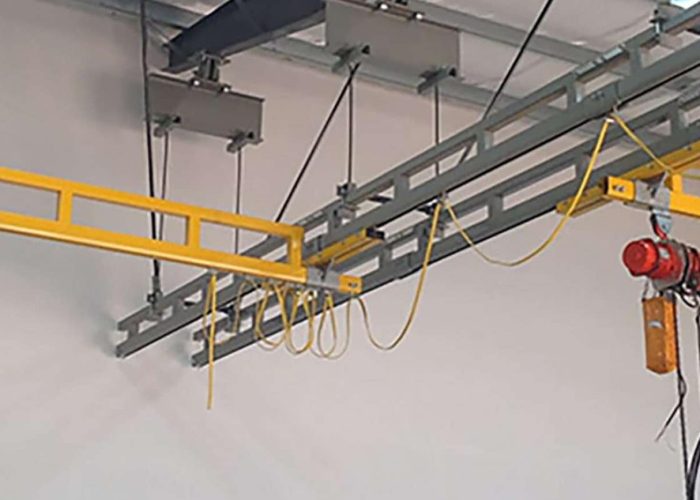

Ceiling & floor mount options
Modular design
Simple to install and extend
Low cost

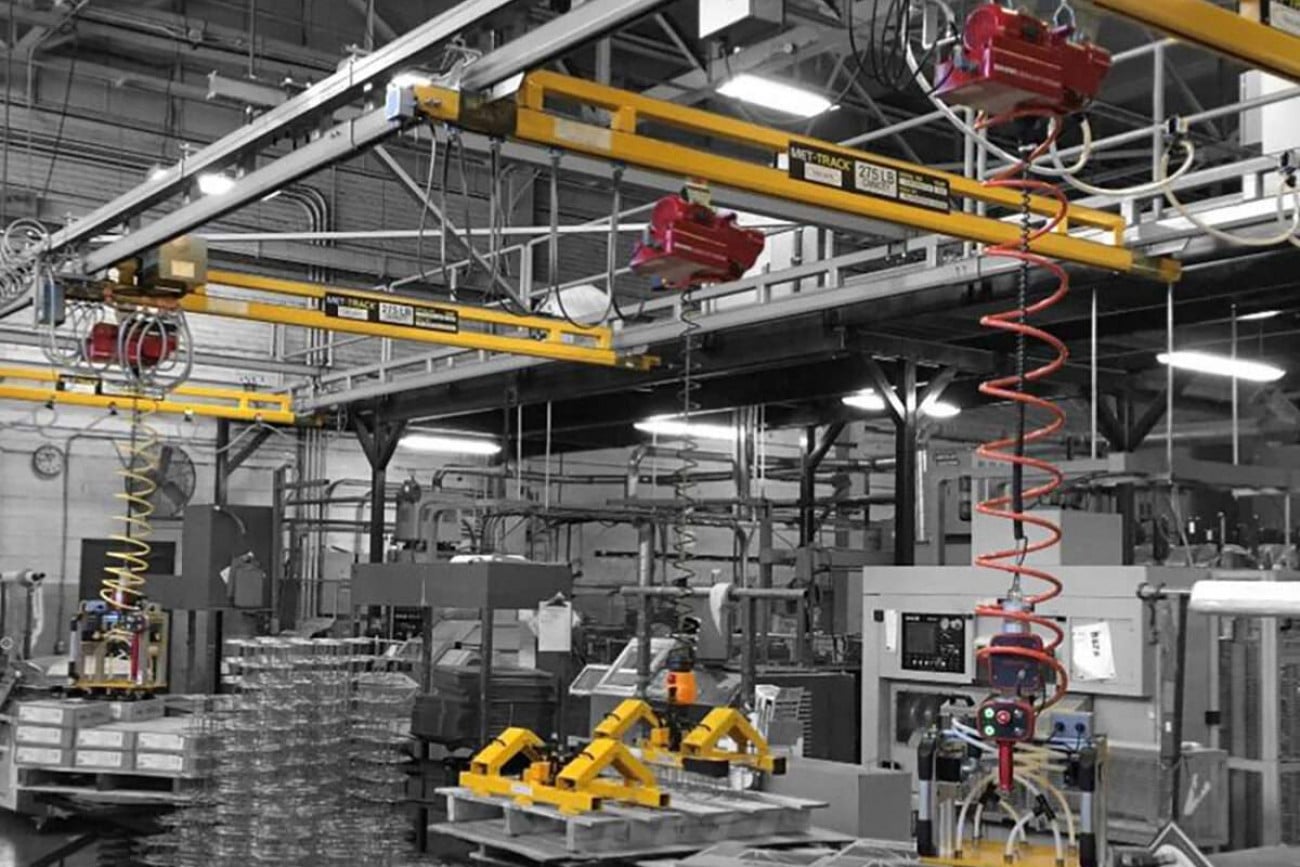

Mixed capacity systems

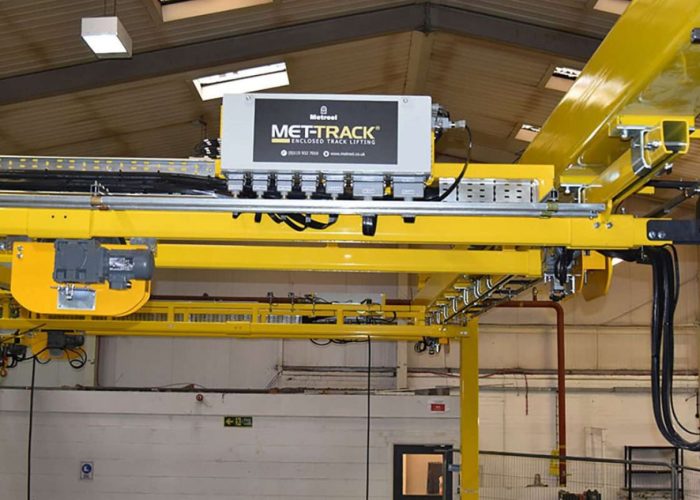

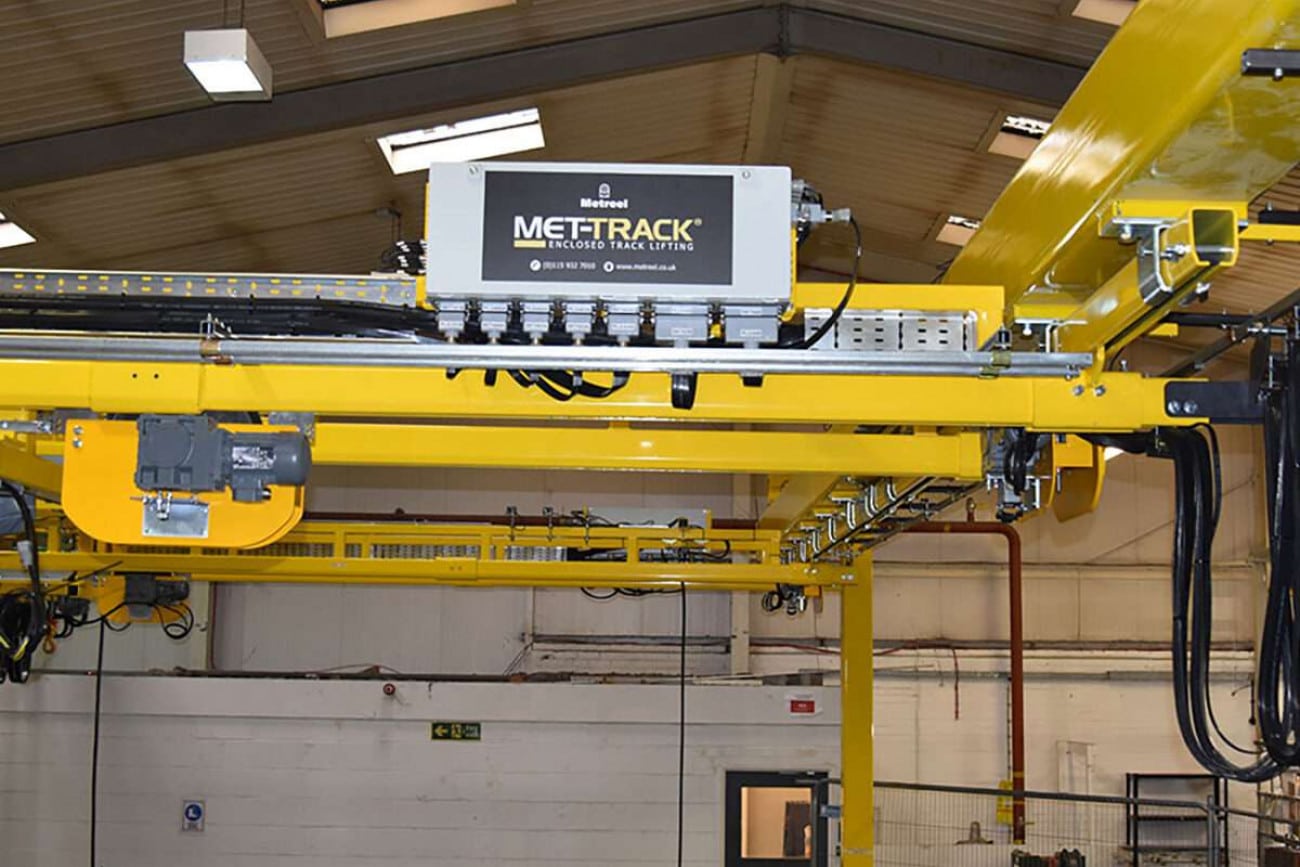

Motorized tractor units
Telescopic bridges
Cantilever bridges
Track transfer units
Made in USA
About The Workstation Bridge Crane
TRACK FEATURES:
1. Six capacities to choose from 250 lbs (125kg), 500 lbs (250kg), 1000 lbs (500kg), 2000 lbs (1000kg), and 4000 lbs (2000kg), and 6000 lbs (3000kg).
2. Long spans of up to 40 ft (12 m) and bridge lengths up to 42 ft allow systems to be installed with the minimum number of supports, maximizing the cell layout
3. Enclosed track bridge cranes are up to three times easier to move than traditional bridge cranes
Industry-Leading Crane Lengths
Met-Track bridge cranes now support a 42-foot bridge length and 40-foot runway span, extending previous maximums.
Increased Coverage
Longer spans provide nearly 10 additional feet of hook coverage widthwise and lengthwise
Less Steel Work Required
Extended spans reduce the need for intermediate support columns, freeing floor space and lowering installation costs.
The Met-Track® pre-engineered modular design allows for easy relocation and/or expansion by simply adding runway sections and/or additional bridges. Splice joints connect the track sections and are complete with vertical and horizontal adjustment screws, facilitating precise alignment of the track sections. Floor mounted cranes can be installed on any normal 6-inch (150mm) reinforced concrete floor. For ceiling mounted cranes it is imperative that you seek professional advice on whether your building structure is capable of withstanding the forces generated by the workstation crane.
What is a Workstation Crane?
Frequently Asked Questions
What is a workstation crane?
A workstation crane is a lifting device used to move material from one part of a facility to another, safely and economically.
What industries use workstation cranes?

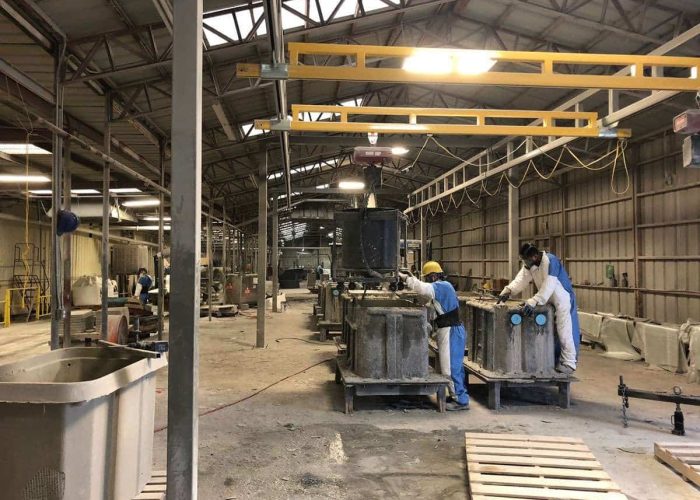

A wide variety of industries use workstation cranes, including stone facilities, machine shops, car manufacturers, warehouses, meat processing plants, paint facilities, and more.
How do workstation cranes work?
Workstation cranes operate on an enclosed track that runs on metal wheels. The two sides (runways) of the crane run north to south, with a bridge in between that runs east to west. The runways lift the product onto a hoist attached to the bridge.
How much do workstation cranes cost?
Met-Track workstation cranes cost between $10,000 – $100,000 depending on the size and lifting capacity.
What is the lift capacity of a workstation crane?
Met-Track workstation cranes can lift between 250 – 6,000 lbs.
How should I maintain my workstation crane?
We recommend an annual inspection to make sure bolts are tight and everything is running smoothly. Your Met-Track dealer can handle your inspection and maintenance needs.
Do workstation cranes make my job site safer?
Yes! Our workstation cranes comply with OSHA safety standards, and enclosed track equipment is less likely to come off-track, creating a safer work environment.
Are Met-Track workstation cranes durable?
Met-Track workstation cranes are powder-coated (as opposed to enamel paint), making them less likely to chip. We also use metal wheels inside the enclosed track rather than plastic or rubber, so they are highly durable and don’t have to be regularly replaced.
How do I install my workstation crane?
The installation process for Met-Track workstation cranes is simple and quick. Drill the columns into the floor with bolts, then erect the runways around the columns. Your Met-Track dealer can handle your installation needs.
What are the movement restrictions for a workstation crane?
Each Met-Track workstation crane is custom designed and manufactured for each client’s unique needs. Met-Track workstation cranes can be configured to move material up to 36 feet in an east-west direction, and unlimited distance in a north-south direction.
